Class 150~1500 Bolt Globe Valve

globe valve
Class 150~1500 Bolt Globe Valve

standard Material specifications (CLAss 150Lb~800Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
4 Gasket Corrugated ss + graphite ss + PTFE
5 Bonnet A105 A276 304 A276 304(L) A276 316(L)
6 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Pin A276 420 A276 304
8 Gland A276 410 A182 F304(L) A182 F316(L)
9 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
10 Gland Flange A216 WCB A351 CF8
11 Gland Nut A194 2H A194 4 A194 8 A194 8M
12 Yoke Nut A276 410
13 H.W. Nut A194 2H A194 4 A194 8 A194 8M
14 Nameplate ss
15 Hand wheel A197
16 stem Packing Flexible Graphite PTFE
suitable Medium W.O.G. etc W.O.G. etc HNO3CH3OOH etc
suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃
Note: Other materials are available upon request.

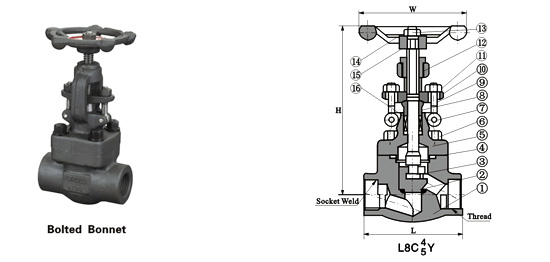

Dimensions(mm) And Weights(kg)
NPs (in) Reduced. 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 79 79 92 111 120 152 172 200
H(OPEN) 166 166 171 207 240 258 330 355
W 100 100 100 125 160 160 180 200
Weights Bolted 1.9 1.9 2.1 3.5 6.0 7.5 11.4 14.6
Welded 1.7 1.7 1.9 3.3 5.2 6.8 10.6 13.8

standard Material specifications (CLAss 800Lb~1500Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
4 Gasket Corrugated ss + graphite ss + PTFE
5 Bonnet A105 A276 304 A276 304(L) A276 316(L)
6 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Pin A276 420 A276 304
8 Gland A276 410 A182 F304(L) A182 F316(L)
9 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
10 Gland Flange A216 WCB A351 CF8
11 Gland Nut A194 2H A194 4 A194 8 A194 8M
12 Yoke Nut A276 410
13 H.W. Nut A194 2H A194 4 A194 8 A194 8M
14 Nameplate ss
15 Hand wheel A197
16 stem Packing Flexible Graphite PTFE
suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Dimensions(mm) And Weights(kg)
NPs (in) Reduced. 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 92 111 111 120 152 172 200 220
H(OPEN) 171 207 207 240 258 330 355 370
W 100 125 125 160 160 180 200 240
Weights Bolted 2.2 3.7 3.6 6.8 7.6 11.6 15.0 21.9
Welded 2.0 3.4 3.3 6.0 5.6 10.3 14.2 18.0
