Class 800~2500 Y-Pattern Globe Valve

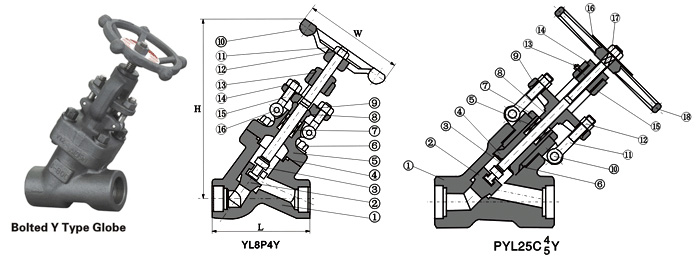

Y pattern globe valve
Class 800~2500 Y-Pattern Globe Valve

standard Material specifications (Class 800Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
4 Gasket Corrugated ss + graphite ss + PTFE
5 Bonnet A105 A276 304 A276 304(L) A276 316(L)
6 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
7 stem Packing Flexible Graphite PTFE
8 Gland A276 10 A182 F304(L) A182 F316(L)
9 Gland Flange A216 WCB A351 CF8
10 Hand wheel A197
11 Nameplate ss
12 H.W. Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 410
14 Gland Nut A194 2H A194 4 A194 8 A194 8M
15 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
16 Pin A276 420 A276 304
suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
suitable Temperature -29℃~425℃ -29℃`550℃ -29℃~180℃
Note: Other materials are available upon request.

Dimensions(mm) And Weights(kg)
NPs (in) 1/2 3/4 1 1-1/4 1-1/2 2
L 98 111 120 140 140 170
H(OPEN) 175 215 254 305 305 365
W 100 125 160 160 180 200
Weights 5 6.3 7.6 9.8 13.8 14.0

standard Material specifications (Class 900Lb~2500Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type A182 F22 Type A182 304(L) A182 F182 F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 stem A182 F6 A182 F304(L) A182 F316(L)
4 Pressure seat A105 A182 F304 A182 F304(L) A182 F316(L)
5 Pressure Ring A182 F304(L) A182 F316(L)
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 P.s. Washer A105 A182 F22 A182 F304(L) A182 F316(L)
8 Yoke Nut A276 410
9 Retaining Nut A194 2H A194 4 A194 8 A194 8M
10 H.W. Lock Nut A194 2H A194 4 A194 8 A194 8M
11 Hand wheel A197
12 Wafer board A105 A182 F22 A182 F304(L) A182 F316(L)
13 Bolt A193 B7 A193 B16 A193 B8 A1983 B8M
14 Nut A194 2H A194 4 A194 8 A194 8M
15 Gland Flange A216 WCB A351 CF8
16 Gland Eyebolt A193 B7 A193 B16 A193 B8 A1983 B8M
17 Gland Nut A194 2H A194 4 A194 8 A194 8M
18 Pin A276 420 A182 F304
19 Gland A276 420   A182 F304
20 Bearing Ear A105 A182 F22 A182 F304(L) A182 F316(L)
21 P.s. Lock Nut A194 2H A194 4 A194 8 A194 8M
22 stem Packing Flexible graphite PTFE
suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Dimensions(mm) And Weights(kg)
NPs (in) 1/2 3/4 1 1-1/4 1-1/2 2
L 900~1500Lb 140 140 140 178 178 216
2500Lb 186 186 186 232 232 279
H(OPEN) 333 333 333 406 406 524
W 125 125 160 160 180 200
Weights 900~1500Lb 11.2 10.5 10.1 21.0 19.6 40.4
2500Lb 12.3 11.6 10.8 28.0 26.4 43.8
